15-year ceramic warranty

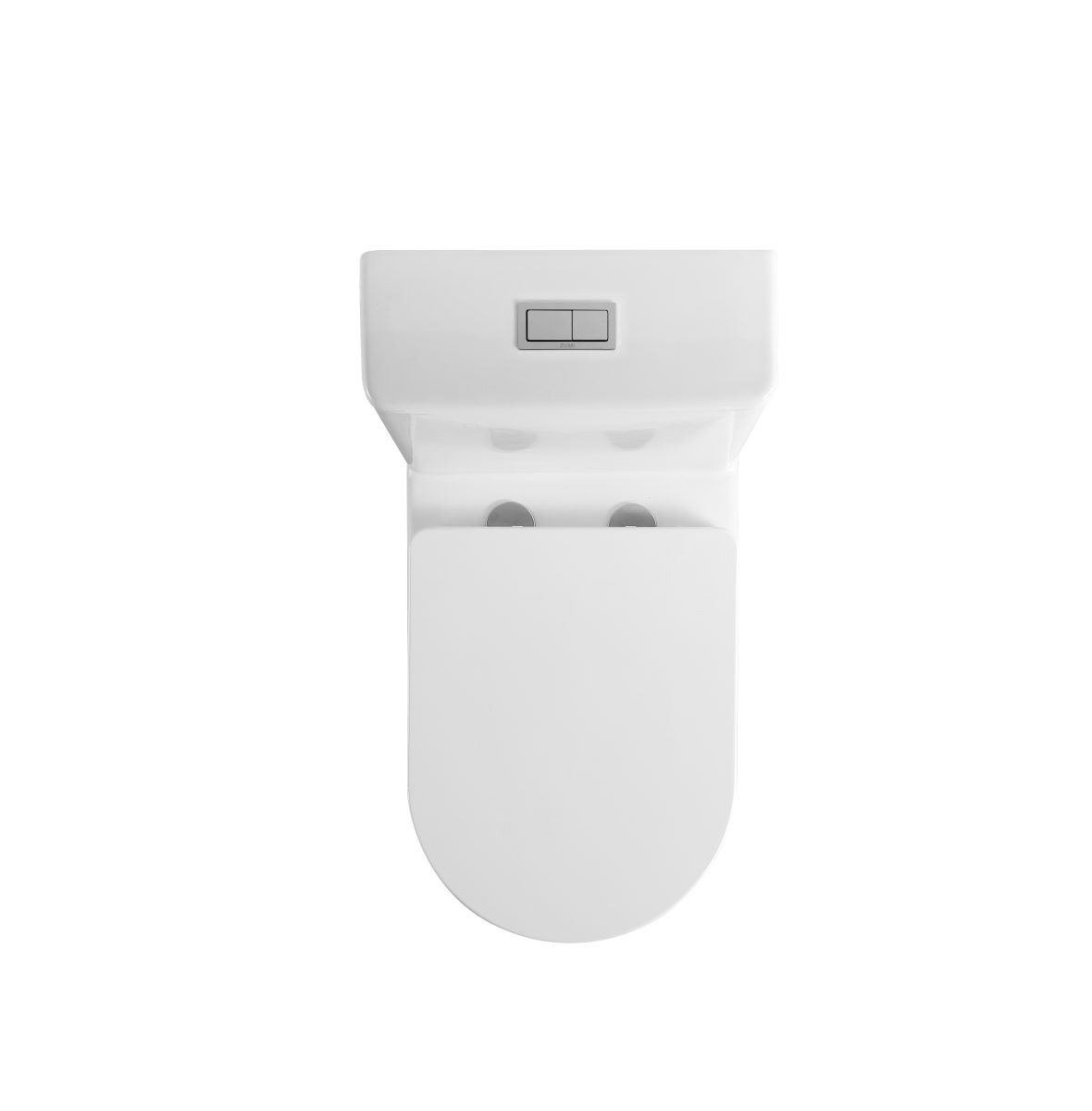

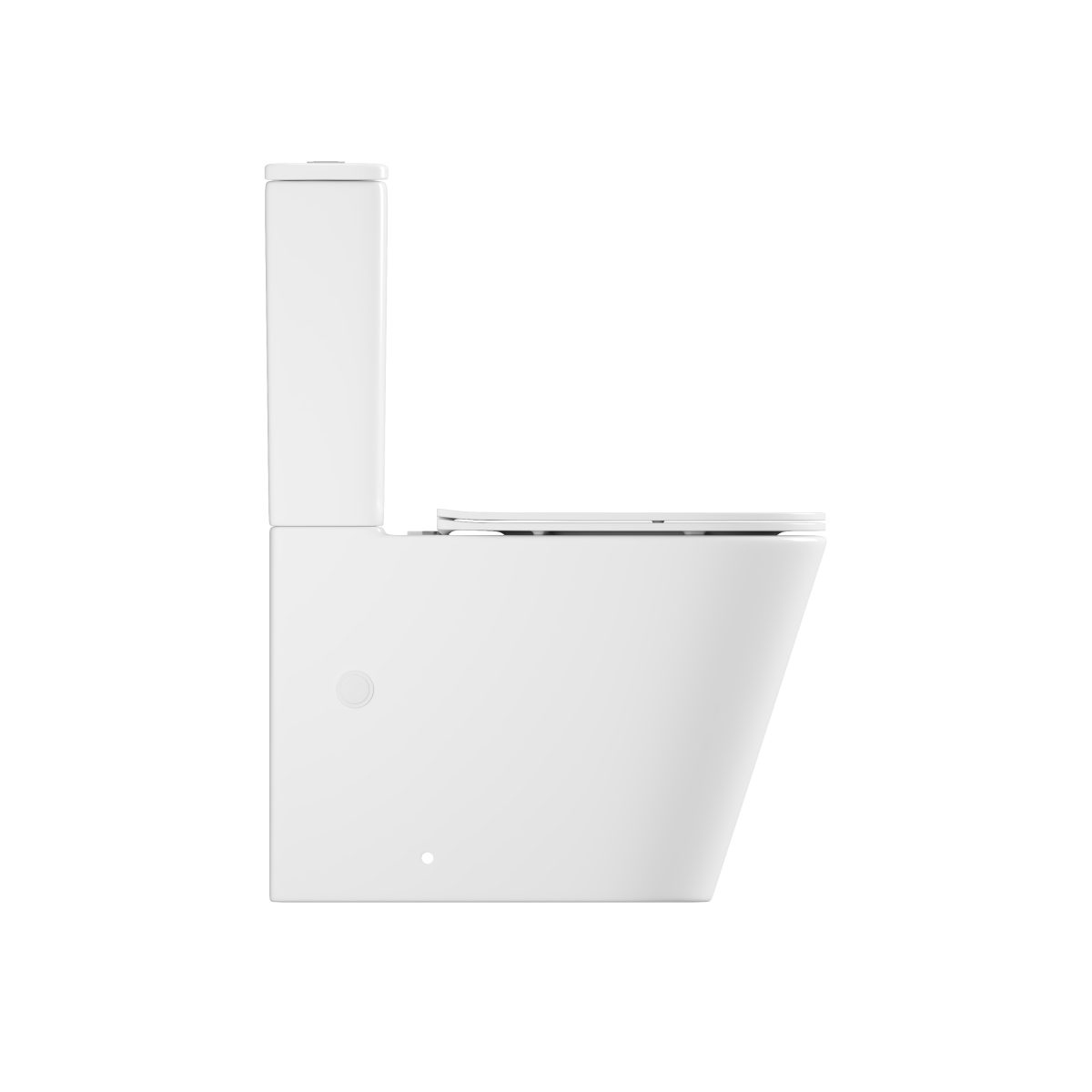

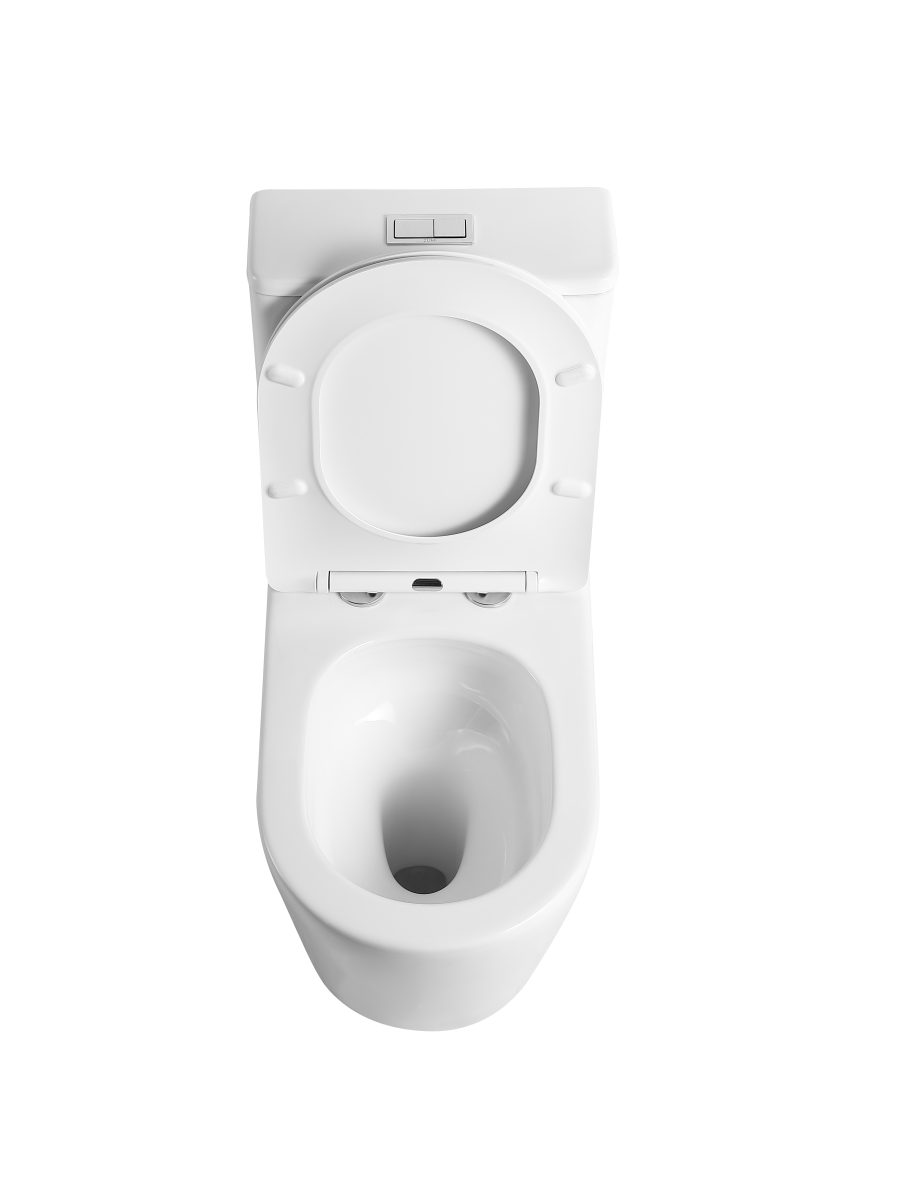

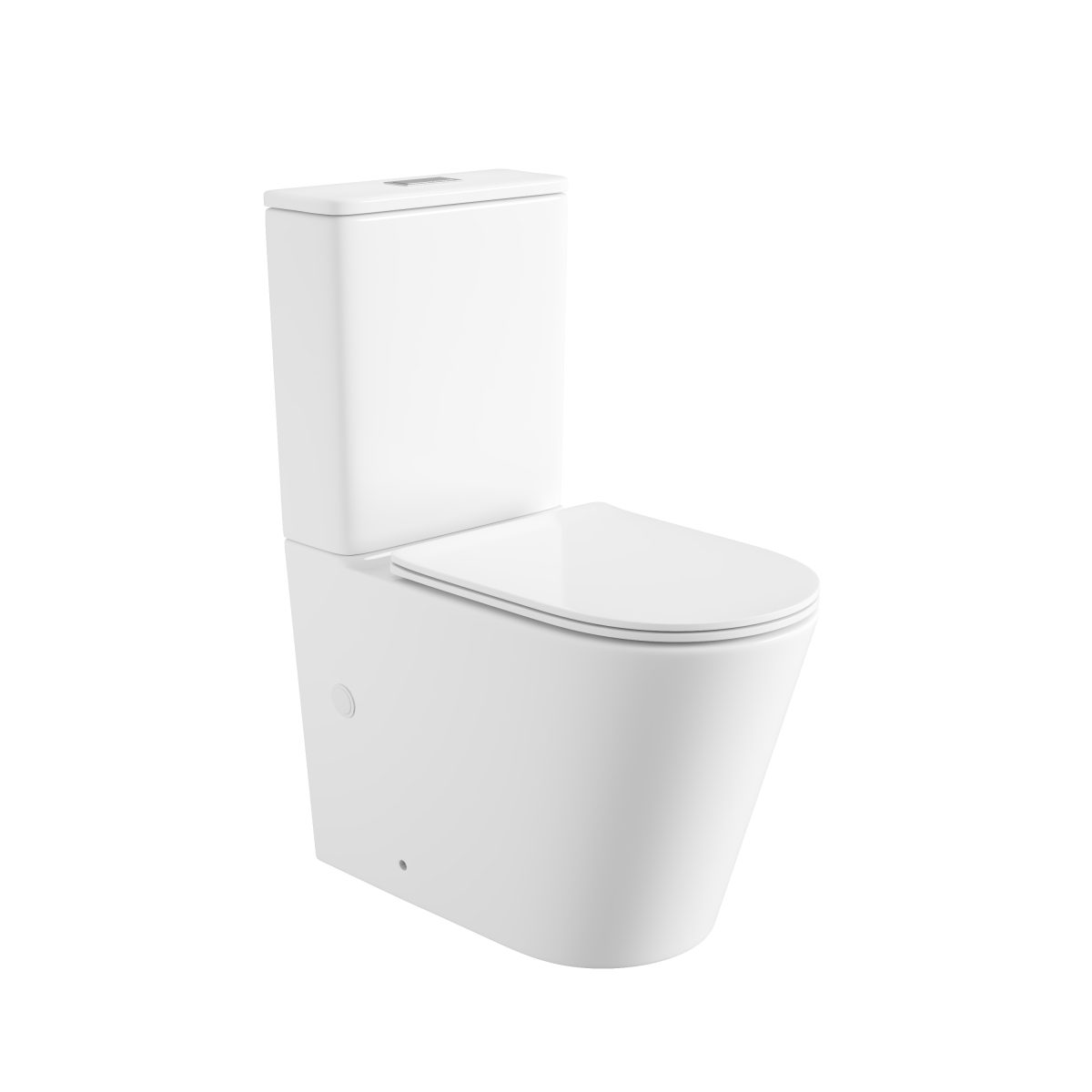

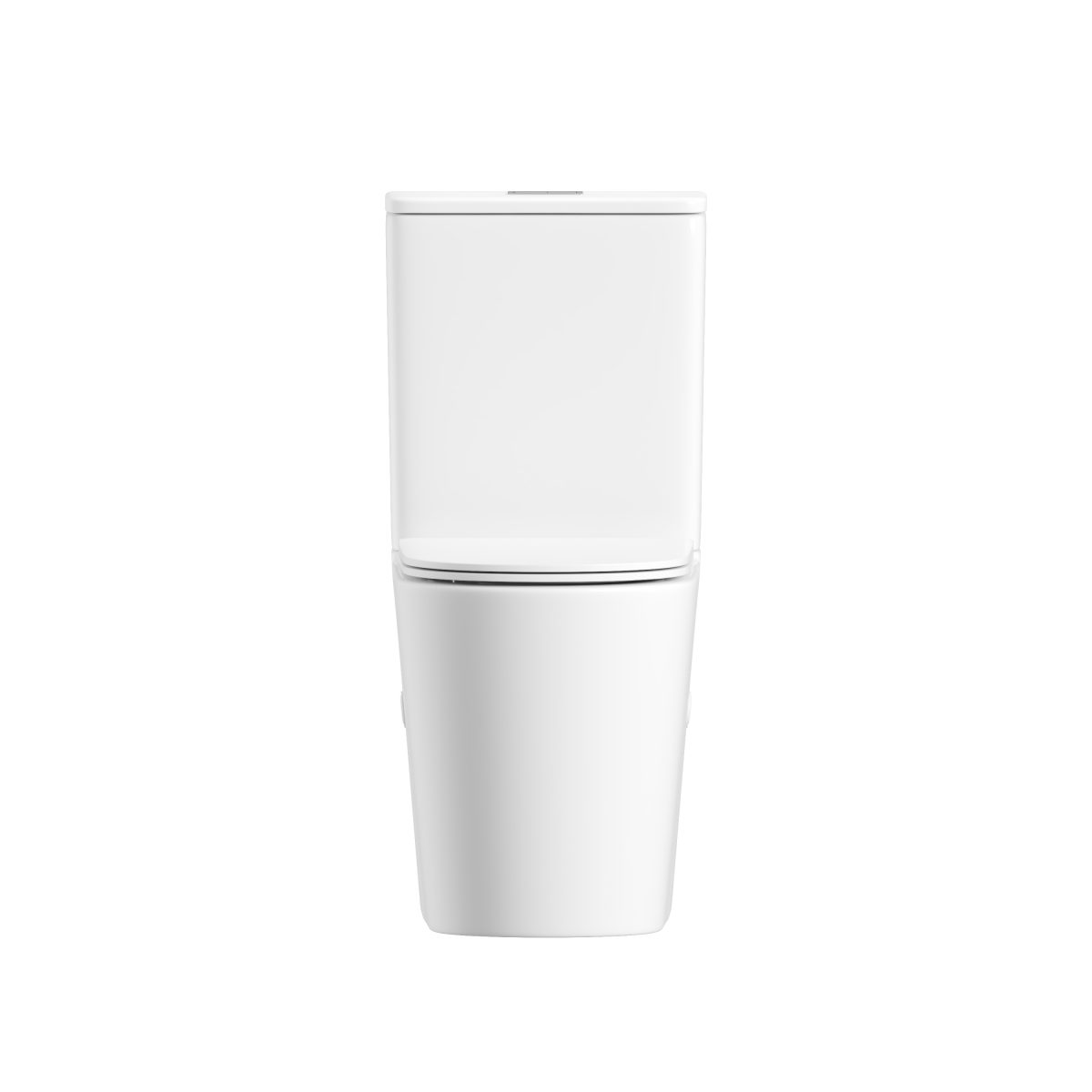

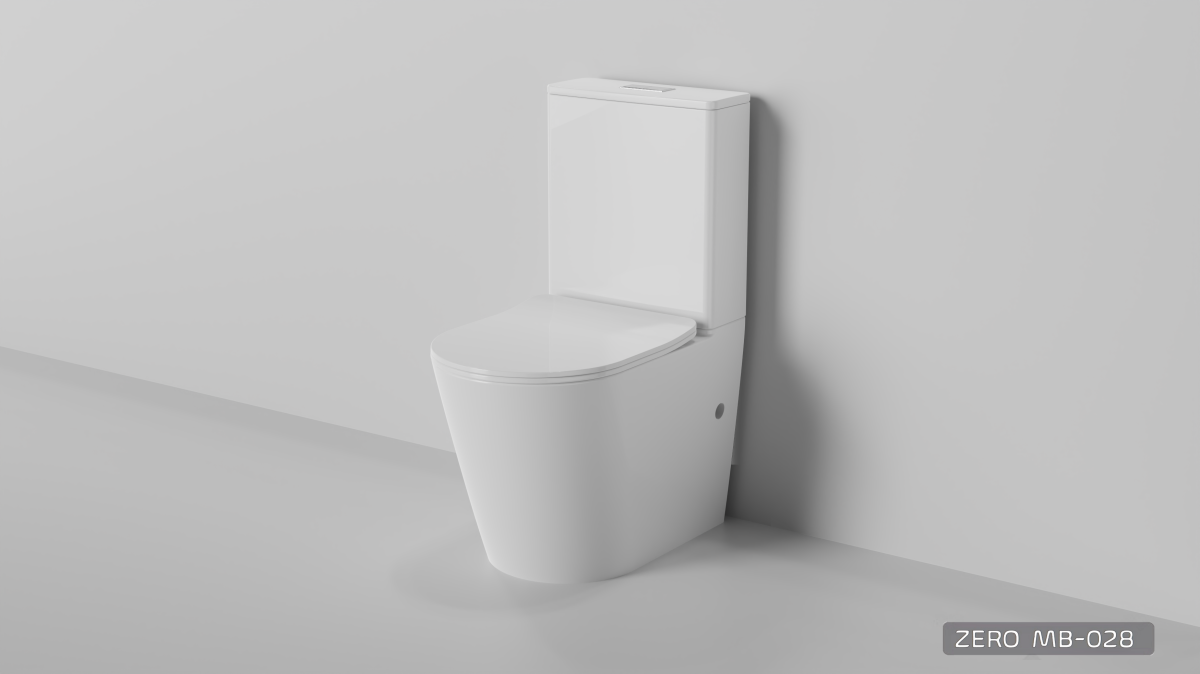

The Zumi Zero MB-028 combines an extra-high back-to-wall pan with rimless nano glazing and single-hole whirlpool flushing.

Manufacturer model: MB-028

Supply only. Installation is arranged separately.

Key features

• Extra-high rimless pan with a nano-glazed finish.
• Single-hole whirlpool flush, also described as tornado flushing in Zumi’s technical sheet.
• Slim soft-closing seat with one-button quick release.
• Seat reference: MISC-0755, as listed by Zumi.
• Universal water inlet: top entry or bottom entry on either side.
• Suitable for S-trap or P-trap installation.

Specifications

• Overall dimensions: 660 mm long × 375 mm wide × 850 mm high.
• Pan height shown on drawing: 430 mm.
• S-trap set-out: 75–180 mm.
• P-trap roughing-in: 180 mm.
• WELS rating: 4 stars; registration L07527.
• Average flush volume: 3.5 litres.
• Colour: white.

Specifications follow Zumi’s MB-028 technical sheet. Refer to the drawing below for installation clearances.

Optional finishes

Chrome is included. Choose a brushed gold, brushed nickel, gunmetal, matte black, brushed bronze or matte white button and hinge-cover set above for an additional $79. The selected suite price includes this upgrade. Gallery images illustrate the available finishes; a separate photo of the matte-white upgrade is not yet available.

The supplier price list identifies the optional white button-and-hinge pair as Matte White (A3626WH).

Materials and care

Materials and finish: White ceramic toilet pan with the seat and selected flush components described above.

Clean ceramic surfaces and the seat with mild household detergent and a soft, non-abrasive cloth. Avoid harsh chemicals and scouring products. Do not put aftermarket sanitising additives inside the cistern tank.

Warranty clarification

The model page states 3 years on parts. The linked general warranty schedule lists different periods for some residential internal components; contact Nextyl for the terms applicable to the supplied model and use.

Warranty

15-year ceramic warranty, 3-year parts warranty and 1-year toilet-seat warranty where included, with the first 12 months of on-site support. Subject to Zumi’s manufacturer terms.

View Zumi warranty information

Dimensions and installation

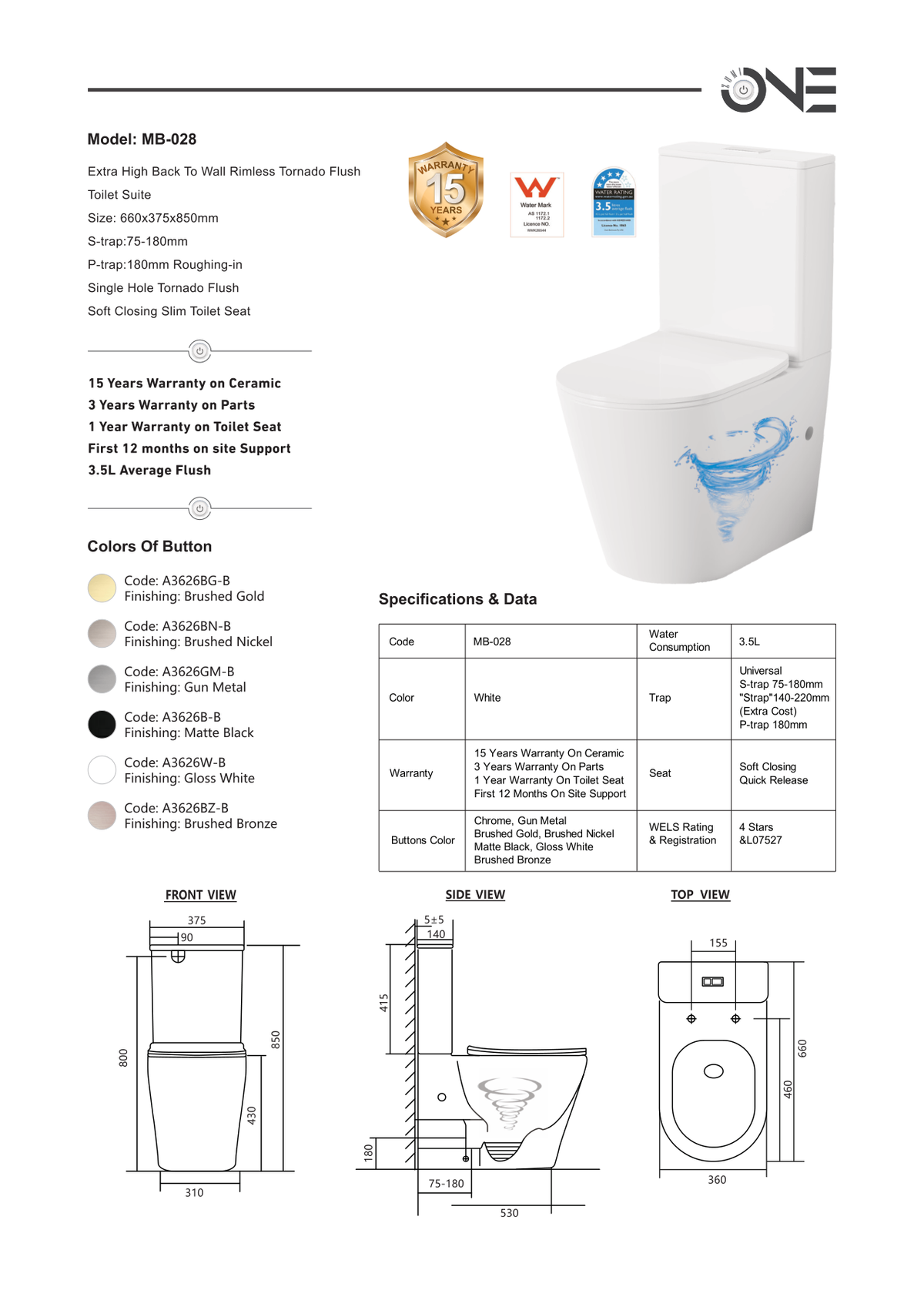

Dimension drawing

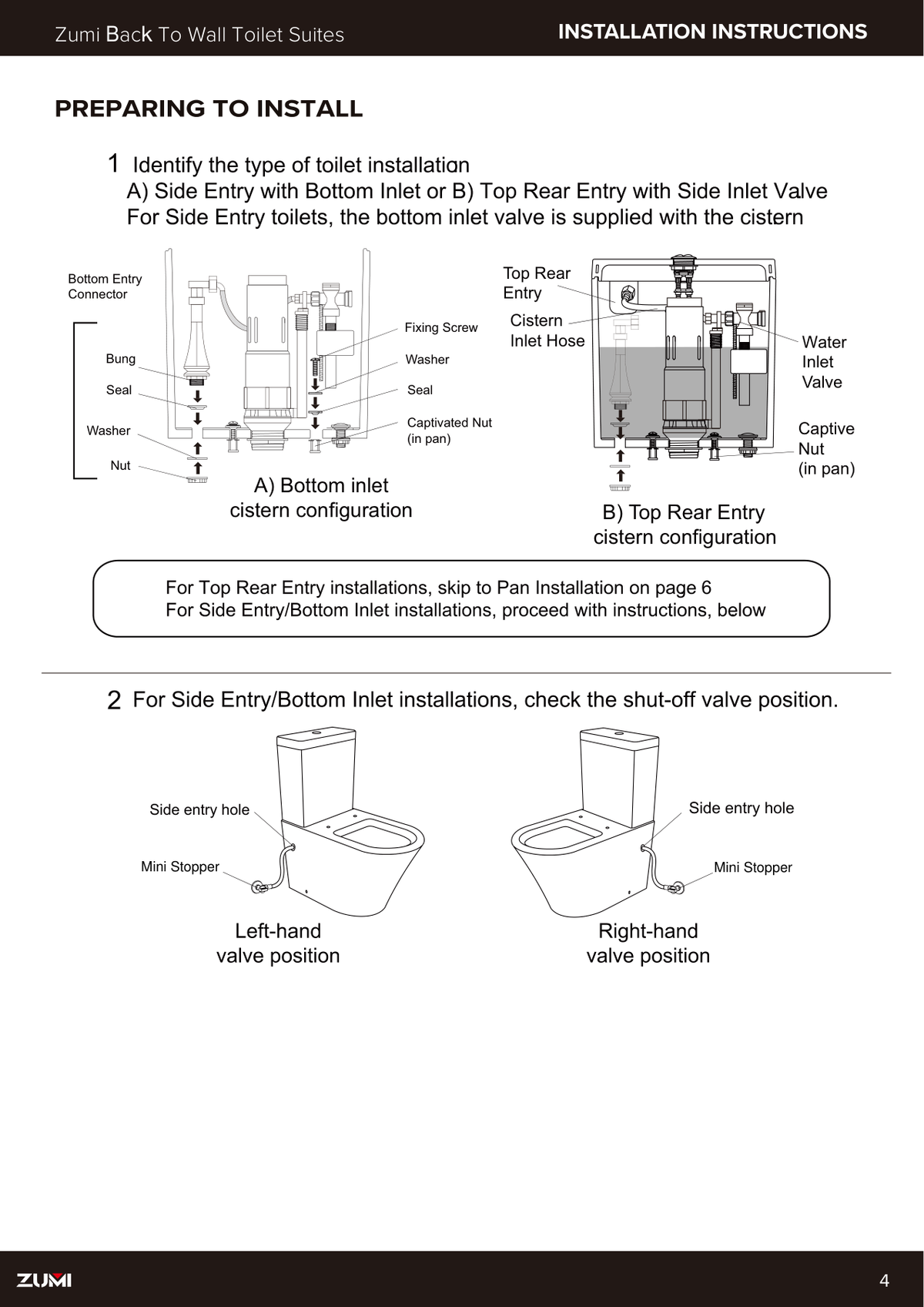

Installation reference

Installation images are extracts. Read the complete manufacturer guide and use the selected model’s drawing for dimensions and set-out.

• Specifications (PDF)
• Manufacturer warranty terms (PDF)
